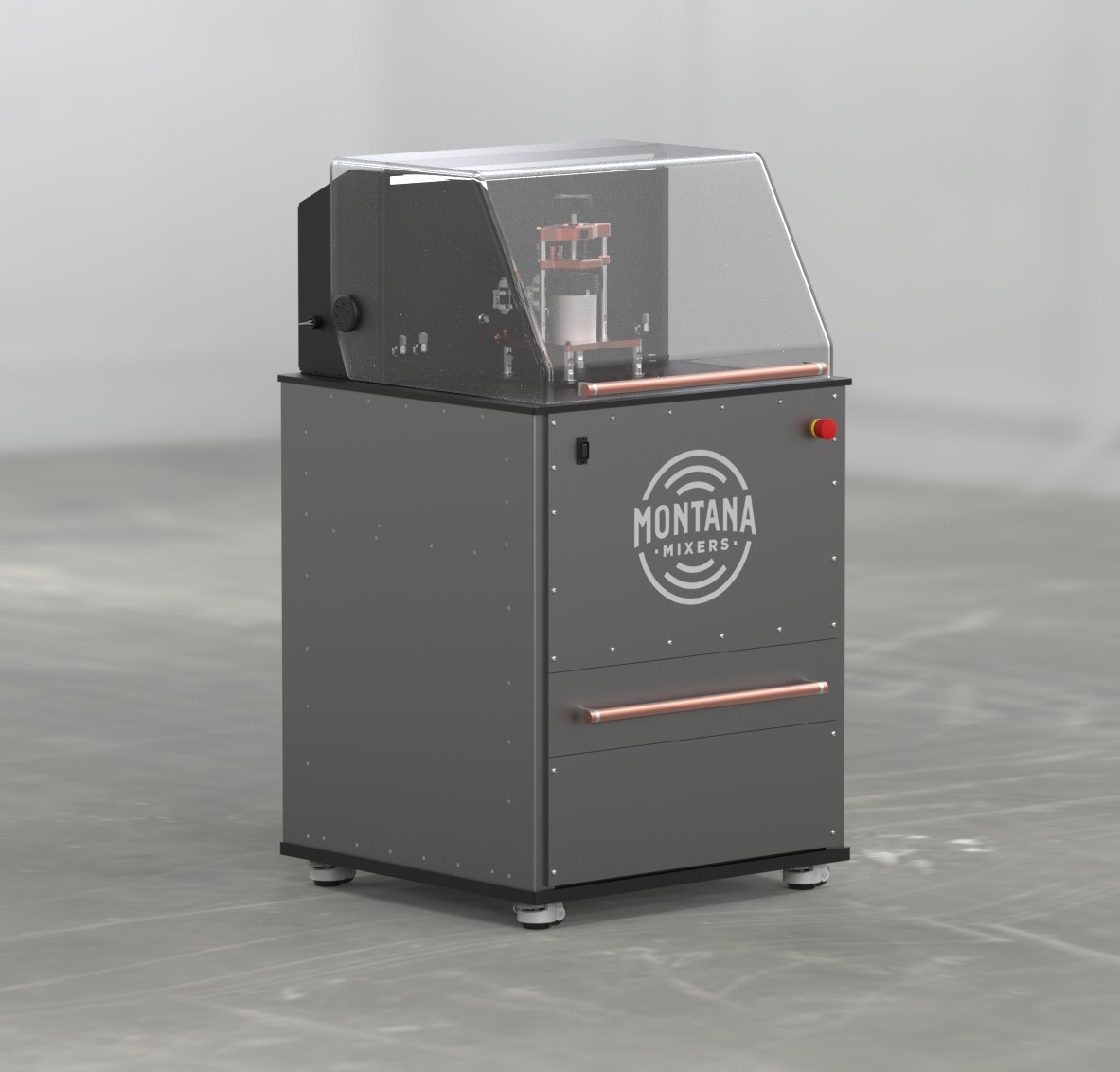

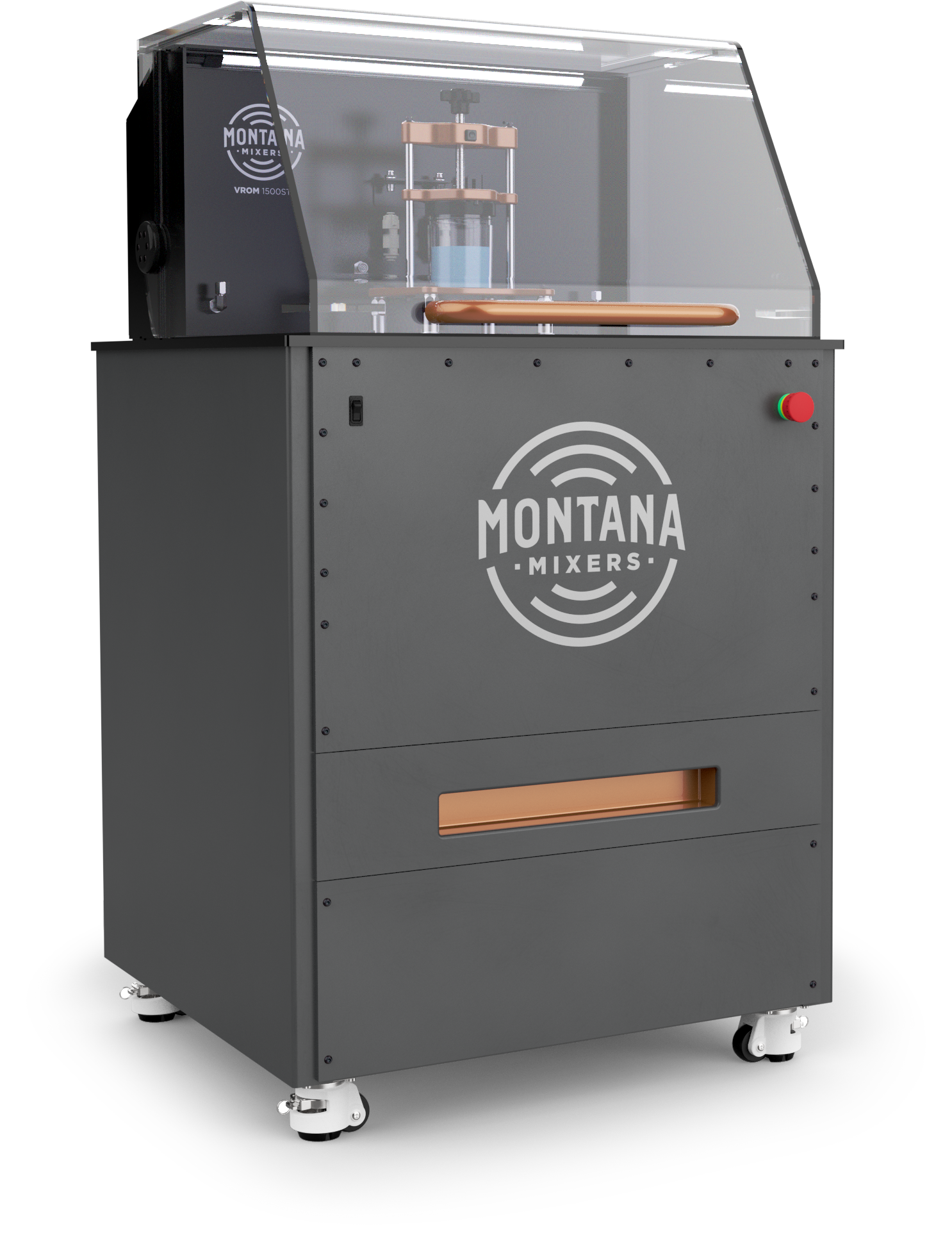

VROM 1500ST

Lab-to-Pilot-Scale Resonant Mixer

Flexible Lab-to-Pilot Scale

No minimum batch size required – mix as little as a gram or up to 5 kg, depending on the application parameters. Multiple batches can run simultaneously, provided the payload limit is not exceeded.

Smart Controls

Our MixOS™ browser-based interface makes recipe development fast, intuitive, and scalable from lab to pilot programs, with built-in monitoring for efficiency and results.

Built for Reliability

Like all VROM systems, the 1500ST maximizes up-time by isolating sensors and power cables from vibration for long-term durability and consistent performance.

VROM 1500ST Features & Specifications

User Experience & Convenience

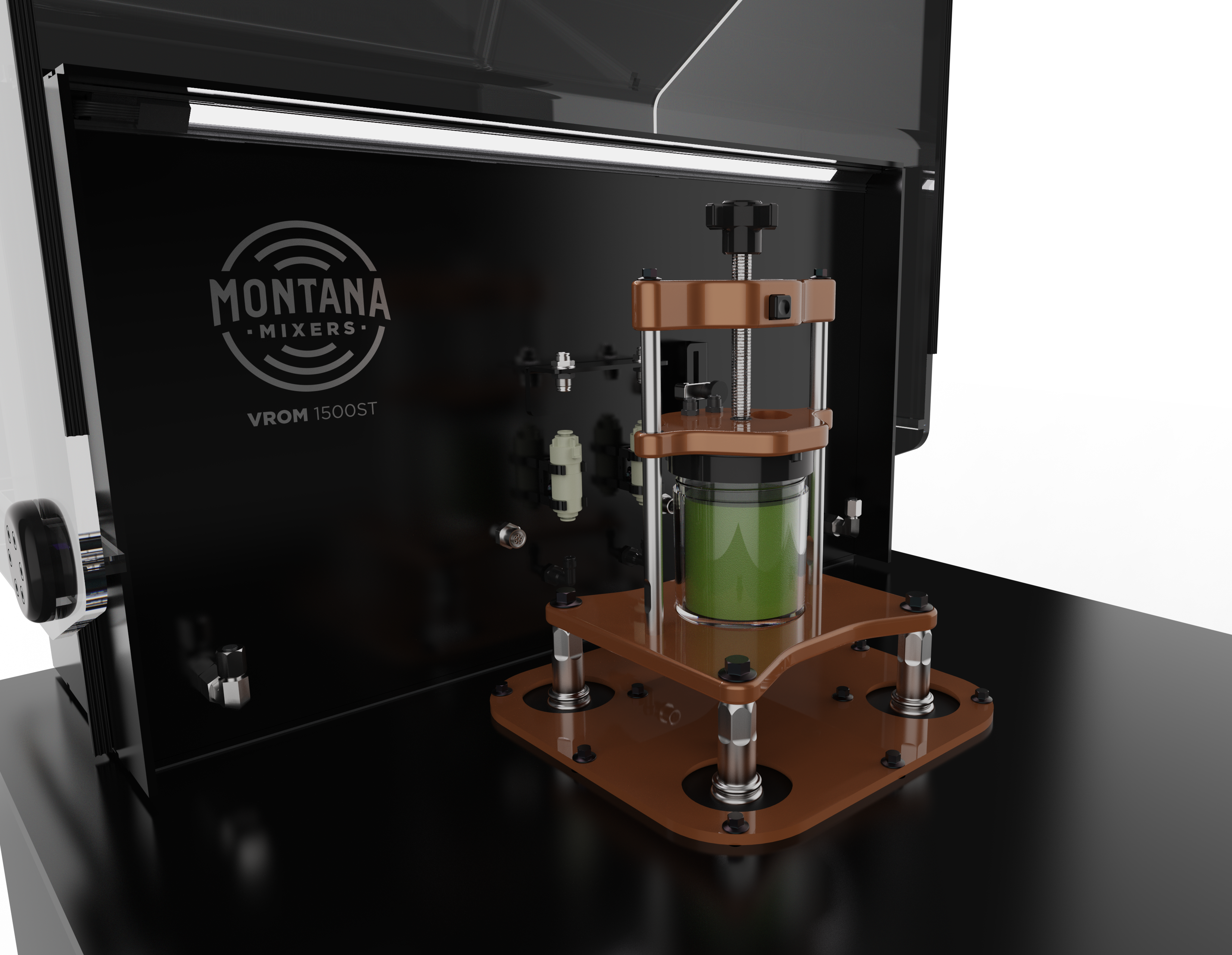

  • Quick-release vessel holder makes change-out easy
  • Available with tool-free temperature-sensing and pressure-control vessel lid to speed up cycle times

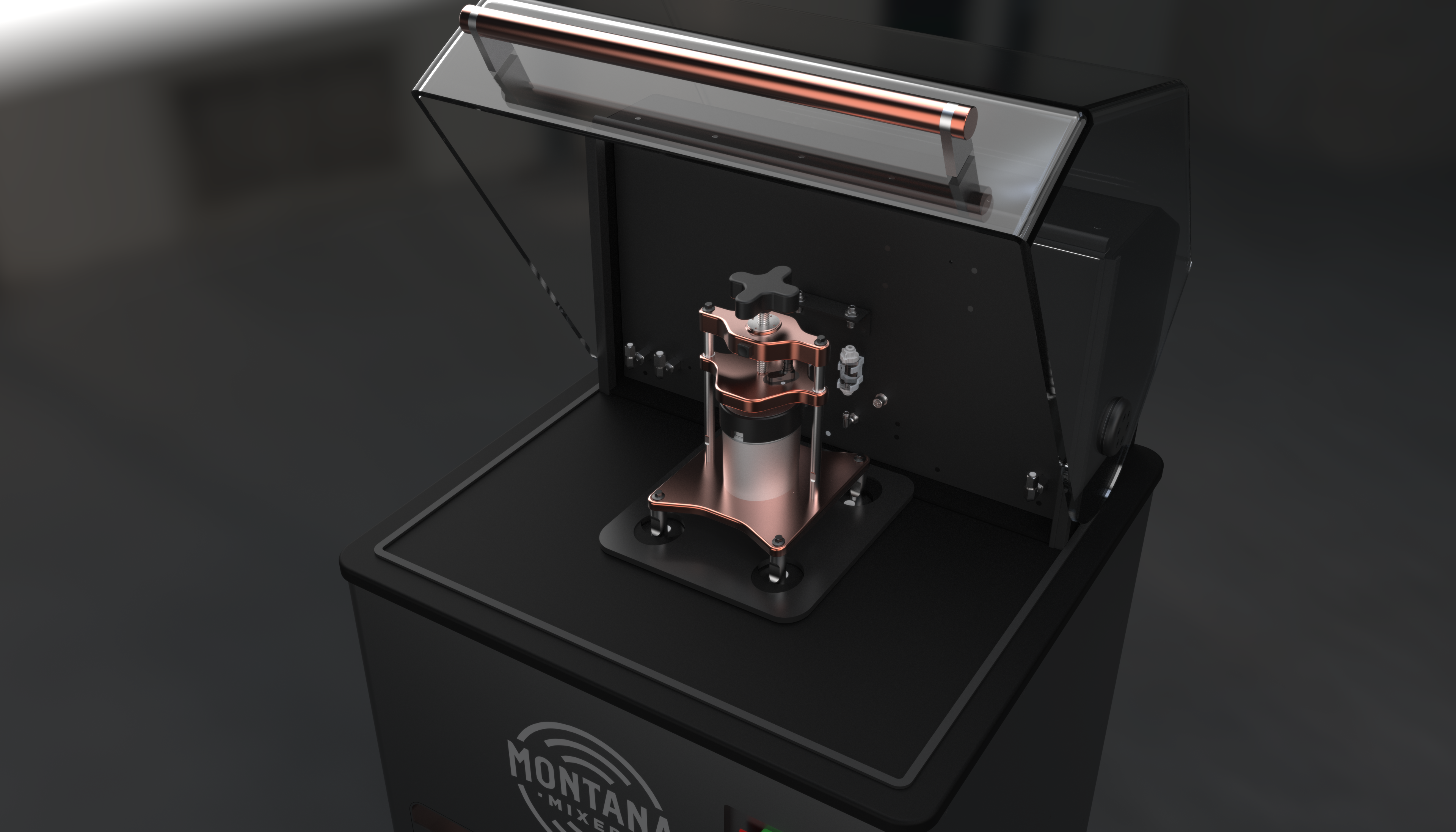

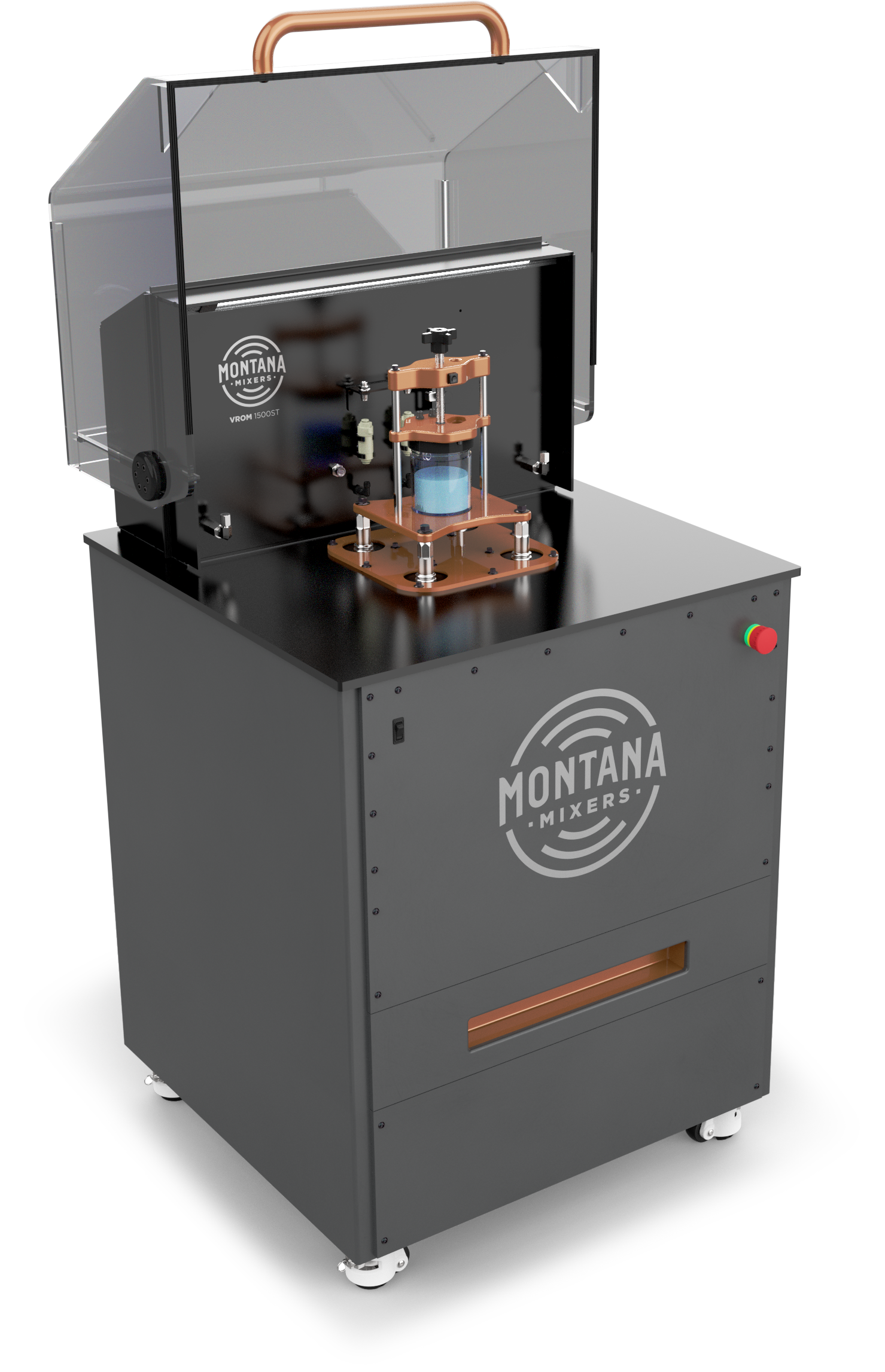

  • No-slam acrylic hood allows full access and makes clean-up simple
  • Locking and leveling industrial casters
  • Built-in tool drawer
  • Durable, easy to clean finishes throughout

Control & Connectivity

  • MixOS™ operable from any modern web browser
    (Windows, Mac, iOS, Android)
  • Connect via Ethernet or built-in Wi-Fi
  • Modes: Manual, Recipe, or Power
  • Optional Modbus TCP/IP for SCADA integration
  • Remote firmware updates

Calibration & Sensing

  • Integrated port for simple acceleration sensor calibration (annual recertification recommended)
  • MixIQ™ technology monitors material motion to optimize mixing

User Support

  • Built-in “How-To” videos and manuals, accessible from browser
  • MixHQ™ cloud client portal (optional subscription) for data storage, reporting, and mixer management

Safety & Compliance

  • Chamber safety interlock and emergency stop
  • 21 CFR Part 11 compliant software with authentication, audit trail, and e-signatures
  • Available in XP configuration for use with energetic or hazardous materials

Process Control

  • Optional vessel pressure control: 3 Torr – Ambient
  • Optional RTD for temperature monitoring
  • Optional jacketed vessel for temperature control
Get a Quote for VROM 1500ST
Talk to a Mixing Expert About VROM 1500ST

VROM 1500ST Key Specifications

Typical Working Payload
1kg - 6kg
(material & vessel dependent)
Max. VFM (Vessel + Fixture Mass)
9 kg (19.8 lb)
Max. Acceleration
100 g
Vessel Vacuum
3 Torr - Ambient
Temperature Sensing
0° - 100° C
(32° - 212° F)
Electrical Requirements
90-120VAC (1 phase), 15A, 50/60Hz
180-240VAC (1 phase), 7.5A, 50/60Hz
Machine Weight
281 kg (620 lbs)
Machine Dimensions
55” H x 30.7” W x 30” D
(139.8 x 78.0 x 87.6 cm)
